/ Laser Tools Clutch and Flywheel Jack 136kg - HGV - MPN 7249
Description

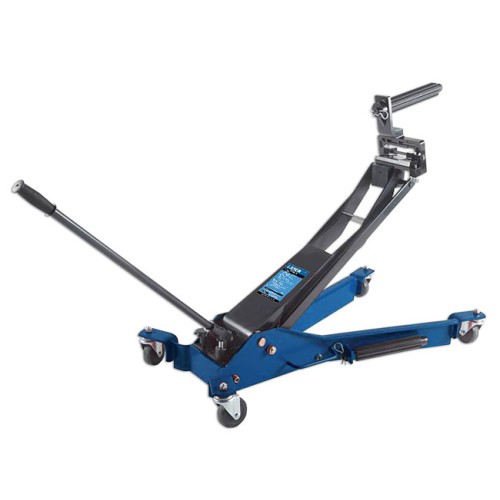

Clutch jack for flywheel removal and installation, designed to remove, install and transport (in the lowered position) 14" and 15�" double-disc clutches and/or flywheel assemblies as fitted to HGV vehicles.
The low profile of the jack,assembled clutch and four smooth-action castors make it easy to move into position under the vehicle.
Capacity 136kgs (300lbs); min. height: 288mm; max. height: 980mm; weight: 60kgs.
Tilt saddle enables the clutch to be positioned horizontally or vertically.
360� rotating pump handle for precise alignment; 4 swivel castors for easy of use.
Includes 2" and 1 3/4" splines, used as dummy output shafts to align the clutch and flywheel assemblies prior to installation on the vehicle. CE and UKCA compliant.
Information Sheet
Instructions
Laser Tools Clutch and Flywheel Jack 136kg - HGV - MPN 7249
Part number: 7249
£863.37 VAT INC (£719.48 VAT EX)
